In industries where large-scale heating, steam generation, or energy production is essential, confusion often arises regarding the role and function of industrial boilers. Many businesses struggle with selecting the right boiler due to limited understanding, leading to increased operational costs, inefficiency, and safety hazards. The good news is that understanding the basics of what an industrial boiler is and how it functions can help you make informed decisions, ensuring optimal efficiency and safety in your operations. This article will provide a clear, practical explanation to address these concerns.

An industrial boiler is a closed pressure vessel designed to generate steam or hot water by heating water through the combustion of fuels such as natural gas, oil, coal, or biomass, primarily for use in industrial processes, heating systems, or power generation. It works by transferring heat produced from burning fuel to water, converting it into steam or hot water that can be utilized in various industrial applications.

For those looking to maximize efficiency, safety, and performance in their industrial facilities, understanding how industrial boilers operate is crucial. Continue reading to gain deeper insights into the types, components, benefits, and maintenance practices of industrial boilers.

What Is the Basic Definition of an Industrial Boiler?

Industrial operations depend heavily on consistent, high-capacity heat energy to power manufacturing processes, chemical reactions, or space heating. Without a reliable heat source, downtime, production delays, and quality issues are inevitable. For industries dealing with these challenges, a well-designed industrial boiler becomes the cornerstone of efficiency. But what exactly is an industrial boiler, and why is it indispensable? This article clarifies the basic definition, functionality, and practical significance of industrial boilers.

An industrial boiler is a closed pressure vessel designed to generate steam or hot water by applying heat energy to water, typically powered by fuels like natural gas, coal, oil, or electricity, for use in various industrial applications such as manufacturing, power generation, and chemical processing.

Understanding this basic definition is crucial because it sets the foundation for recognizing how industrial boilers contribute to cost efficiency, energy savings, and operational reliability across sectors. Let’s dive deeper to understand their role and significance in your industry.

Key Components and Working Principle of an Industrial Boiler

At its core, an industrial boiler operates on the principle of heating water to produce either steam or hot water, which is then utilized in various processes. Below are the primary components found in most industrial boilers:

Component	Function
Burner	Supplies the heat source, burning fuel to create heat energy.
Combustion Chamber	Contains and controls the burning process.
Heat Exchanger	Transfers heat from the combustion gases to the water.
Steam/Water Drum	Holds water and steam, separating the two phases.
Controls & Safety Valves	Regulates temperature, pressure, and ensures safe operation.
Exhaust Stack	Discharges combustion gases safely outside the facility.

The process begins with the burner igniting the fuel, creating heat within the combustion chamber. This heat is transferred via heat exchangers to the water within the system. Once the water reaches a certain temperature or pressure, it is either distributed as hot water or transformed into steam to power machinery, heating systems, or manufacturing lines.

Types of Industrial Boilers

Industrial boilers come in several types, each catering to specific needs based on pressure, temperature, and fuel type. Here’s a breakdown:

Boiler Type	Description	Common Applications
Fire-Tube Boiler	Hot gases pass through tubes surrounded by water.	Small-scale industrial applications
Water-Tube Boiler	Water circulates inside tubes heated externally by combustion gases.	Power plants, large-scale production
Electric Boiler	Uses electricity to generate heat.	Environments where emissions are a concern
Waste Heat Boiler	Captures and uses heat from industrial processes.	Energy recovery in various industries

Each boiler type’s choice depends heavily on production scale, energy efficiency goals, fuel availability, and environmental regulations.

Efficiency, Maintenance, and Safety Considerations

Maximizing an industrial boiler’s efficiency is critical for minimizing operating costs. Factors influencing efficiency include:

• Fuel-to-steam efficiency: How well the boiler converts fuel into usable steam.
• Heat recovery systems: Technologies like economizers or condensate return systems enhance efficiency.
• Automation & control systems: Advanced monitoring prevents energy waste.

Maintenance is equally vital. Routine inspections, cleaning of heat exchangers, checking burner operation, and validating safety valves are non-negotiable tasks to avoid boiler breakdowns, which could halt entire production lines.

Safety protocols, including pressure relief valves, emergency shutdown systems, and operator training, are integral, considering the high-pressure nature of these systems.

Case Study: Industrial Boiler Efficiency Upgrade

In 2023, a leading textile manufacturing plant faced soaring energy costs due to outdated boiler equipment. By retrofitting their old fire-tube boiler with a modern water-tube system combined with an economizer, the company improved fuel efficiency by 18%, resulting in annual savings exceeding $250,000. Additionally, emissions compliance was achieved, ensuring sustainable operation.

Conclusion

In essence, industrial boilers are pivotal to the functioning of countless industries. They provide reliable heat and steam for essential processes, influence production quality, and significantly impact energy consumption and costs. Understanding the basics of how they operate empowers decision-makers to invest wisely in maintenance, upgrades, and new installations, thereby ensuring long-term operational success.

Ready to Learn More or Upgrade Your Industrial Boiler?

If you are seeking expert advice, tailored solutions, or reliable industrial boiler systems, feel free to contact us today. Our experienced team is ready to assist you in maximizing efficiency, reducing costs, and achieving optimal performance tailored to your industry’s needs!

How Does an Industrial Boiler Work Step by Step?

\ Chain Grate Biomass Boiler SZL[/caption]

Industrial processes depend heavily on reliable heat and steam, and when the boiler fails to perform efficiently, the entire operation can suffer—causing energy losses, production delays, and potential safety hazards. To avoid these risks, industries must fully understand how an industrial boiler works step by step. This article breaks down the process in a clear, structured way so you can ensure smooth, safe, and efficient boiler operations.

An industrial boiler works step by step by first igniting a fuel source in the burner, transferring heat to water through heat exchangers, converting the heated water to steam or hot water in the drum, and distributing it for industrial use while managing exhaust gases and safety systems to maintain optimal pressure and temperature levels.

Knowing these key steps is essential for any industrial operator or engineer aiming to optimize boiler performance. Keep reading to uncover each detailed step and how it contributes to overall efficiency and safety.

Step-by-Step Process: How Industrial Boilers Work

The following detailed steps will walk you through the precise working mechanism of an industrial boiler:

Step 1: Fuel Supply to the Burner

The process begins with the delivery of a fuel source to the burner. Common fuels include:

Fuel Type	Description	Typical Usage
Natural Gas	Clean-burning, readily available	Most industrial settings
Coal	Solid fuel, cost-effective	Power generation, heavy industries
Oil	Liquid fuel, flexible combustion	Remote industries, backup systems
Electricity	Clean, no emissions at point of use	Sensitive industries, small to medium operations

The burner is the component responsible for mixing fuel with air, ensuring proper combustion. Automation systems control the air-fuel ratio to maximize efficiency and minimize emissions.

---

Step 2: Combustion in the Combustion Chamber

Once the burner ignites the fuel, combustion occurs inside a specially designed combustion chamber. This chamber is built to withstand extremely high temperatures, and its design ensures complete fuel combustion to produce the maximum amount of heat while preventing heat loss.

Combustion Chamber Features	Purpose
High-temperature resistant lining	Prevents damage from prolonged heat exposure
Optimized airflow system	Ensures complete combustion
Insulation layers	Minimizes heat loss, improves efficiency

---

Step 3: Heat Transfer via Heat Exchanger

Hot gases produced in the combustion chamber pass through a heat exchanger, which plays a crucial role in transferring heat to the water contained in the boiler tubes or shell. Depending on the boiler type:

• Fire-Tube Boilers: Hot gases pass through tubes surrounded by water.
• Water-Tube Boilers: Water circulates inside tubes heated by hot gases.

Heat transfer efficiency depends on material quality, surface area, and heat exchanger design. Heat exchangers often include baffles to direct the flow for maximum contact and efficiency.

---

Step 4: Water Heating & Steam Formation

The heated water gradually increases in temperature:

Water Phase	Temperature (Approximate)	Outcome
Subcooled liquid	Below 100°C	Water remains in liquid phase
Saturated liquid	100°C at atmospheric pressure	Ready to vaporize
Steam	Above boiling point	Transformed into usable steam

In boilers operating under high pressure, water can reach much higher temperatures before turning to steam, significantly increasing energy output. The steam is collected in a steam drum, where it is separated from any remaining water.

---

Step 5: Steam/Hot Water Distribution

Once the desired temperature and pressure are reached:

Output Type	Application Example
Steam	Power turbines, chemical processing, sterilization
Hot Water	Space heating, manufacturing cleaning processes

The steam or hot water is directed through insulated pipelines to different parts of the facility. Pressure-reducing valves, flow meters, and safety mechanisms control and monitor the distribution process.

---

Step 6: Exhaust Gas Management

After heat is transferred, the combustion gases exit through an exhaust stack. To ensure environmental compliance and reduce energy waste:

Exhaust Management System	Function
Economizer	Recovers residual heat to preheat incoming water
Scrubber/Filters	Reduces pollutants (NOx, SOx, particulate matter)
Stack Damper	Controls airflow and prevents heat loss during low-load periods

---

Step 7: Safety and Control Systems

Modern industrial boilers include automated safety and control features:

Control System Feature	Purpose
Pressure & Temperature Sensors	Constantly monitor to avoid overpressure or overheating
Emergency Shutdown Systems	Automatically shut down boiler in case of malfunction
Blowdown Valves	Remove impurities and sediment from water to prevent scaling
Remote Monitoring	Allows operators to control boilers from control rooms or remotely

---

Visual Overview: Industrial Boiler Workflow

Step Number	Key Action	Key Component	Purpose
1	Fuel delivery & ignition	Burner	Provides heat source
2	Combustion	Combustion chamber	Converts fuel into heat
3	Heat transfer	Heat exchanger	Transfers heat to water
4	Water heating & steam formation	Boiler drum/tubes	Produces steam or hot water
5	Steam distribution	Piping network	Supplies steam to end-use processes
6	Exhaust gas release & recovery	Exhaust stack, economizer	Handles waste gases, recovers residual heat
7	Monitoring & safety management	Sensors, valves, control systems	Ensures safe, efficient, and reliable operation

Conclusion

Understanding the step-by-step working process of an industrial boiler is critical for anyone involved in plant operations or maintenance. Each stage—fuel combustion, heat transfer, steam generation, and safety management—is essential to ensure maximum efficiency, safety, and cost-effectiveness. Skipping or misunderstanding any step can result in inefficiencies, increased operational costs, or safety hazards.

Need Expert Guidance on Your Industrial Boiler System?

For tailored consultation, system upgrades, or custom industrial boiler solutions, contact us today. Our team of specialists is ready to assist you in optimizing your boiler performance and ensuring long-term reliability!

What Are the Main Types of Industrial Boilers and Their Differences?

Selecting the right industrial boiler is critical to the success of any industrial operation. Choosing the wrong type leads to energy inefficiency, higher maintenance costs, and even operational hazards. Many customers ask: what are the main types of industrial boilers, and how do they differ? Understanding these differences is key to making informed purchasing decisions that improve efficiency, reduce costs, and ensure regulatory compliance.

The main types of industrial boilers are fire-tube boilers, water-tube boilers, electric boilers, waste heat recovery boilers, and fluidized bed boilers. Each type differs based on design, fuel type, operational capacity, efficiency, and application suitability—making it essential to select the right boiler type according to the industry’s specific needs.

Choosing the right boiler can significantly enhance your plant’s operational efficiency. Continue reading to learn detailed differences, key advantages, and which type best suits your requirements.

Overview: Main Types of Industrial Boilers

Here’s a table summarizing the five most common industrial boiler types:

Boiler Type	Design Concept	Fuel Type	Best Suited Applications	Key Features
Fire-Tube Boiler	Hot gases flow through tubes immersed in water	Natural gas, oil, coal	Small to medium industries, heating applications	Low pressure, easy operation, low cost
Water-Tube Boiler	Water flows inside tubes heated externally	Natural gas, coal, biomass	Power plants, chemical processing, high-capacity	High pressure, high efficiency, scalable
Electric Boiler	Electricity heats water directly	Electricity	Clean environments, hospitals, food processing	Zero emissions at point of use, compact size
Waste Heat Recovery Boiler	Uses excess heat from industrial processes	Heat from other systems	Steel, glass, and chemical industries	Energy saving, reduces fuel consumption
Fluidized Bed Boiler	Fluidized bed of solid particles for combustion	Biomass, coal, waste fuels	Waste management, biomass plants, multi-fuel use	Low emissions, flexible fuel usage

1. Fire-Tube Boilers

Working Principle: In fire-tube boilers, combustion gases pass through tubes that are surrounded by water. The heat from these gases is transferred to the water, converting it to steam.

Feature	Details
Pressure Range	Up to 250 psi
Efficiency	70%-85%
Maintenance Complexity	Low
Cost	Lower upfront cost
Size	Compact, suitable for space-limited facilities

Pros:
– Simple to install and operate
– Ideal for low to medium steam demand
– Cost-effective solution for small plants

Cons:
– Limited pressure and capacity
– Slower steam generation compared to water-tube boilers

2. Water-Tube Boilers

Working Principle: Water circulates inside tubes heated externally by combustion gases. The steam generated is collected at high pressure for industrial use.

Feature	Details
Pressure Range	Up to 1500 psi or more
Efficiency	85%-95%
Maintenance Complexity	Higher due to complex structure
Cost	Higher upfront and maintenance costs
Size	Large, suitable for industrial-scale operations

Pros:
– Supports high-pressure, high-capacity steam needs
– Superior efficiency and heat transfer rate
– Scalable to large industrial applications

Cons:
– Requires trained personnel for operation and maintenance
– Higher initial investment

3. Electric Boilers

Working Principle: Electric boilers use electrical resistance or electrode heating to heat water directly without combustion.

Feature	Details
Pressure Range	Low to medium
Efficiency	Near 100% (point of use)
Maintenance Complexity	Low
Cost	Moderate operational cost, lower maintenance
Size	Compact, space-saving design

Pros:
– Zero emissions at the point of use
– Quiet operation, minimal moving parts
– Ideal for sensitive environments like hospitals, labs

Cons:
– Electricity costs are typically higher than fossil fuels
– Capacity limitations for large-scale production

4. Waste Heat Recovery Boilers (WHRB)

Working Principle: These boilers capture heat from exhaust gases produced by other industrial processes and repurpose it to generate steam.

Feature	Details
Pressure Range	Variable, depending on source heat
Efficiency	Increases overall plant efficiency by 10%-20%
Maintenance Complexity	Medium
Cost	Initial investment offset by energy savings
Size	Depends on waste heat source

Pros:
– Significantly reduces fuel costs and emissions
– Utilizes energy that would otherwise be wasted
– Customizable to specific process needs

Cons:
– Requires stable, consistent heat source
– Integration complexity with existing systems

5. Fluidized Bed Boilers

Working Principle: These boilers combust fuel in a bed of solid particles suspended in air, promoting even heat distribution and fuel flexibility.

Feature	Details
Pressure Range	Medium to high
Efficiency	85%-90%
Maintenance Complexity	Medium
Cost	Higher upfront cost, lower operational cost
Size	Medium to large

Pros:
– Can burn various fuels including biomass and waste
– Low pollutant emissions (SOx, NOx)
– High combustion efficiency due to thorough mixing

Cons:
– Higher installation cost
– Requires experienced operators

Detailed Comparison Chart: Industrial Boiler Types

Criteria	Fire-Tube Boiler	Water-Tube Boiler	Electric Boiler	Waste Heat Recovery Boiler	Fluidized Bed Boiler
Initial Cost	Low	High	Medium	Medium to High	High
Operational Cost	Moderate	Low to Moderate	High (Electricity)	Low	Low to Moderate
Pressure Capacity	Low to Medium	High	Low to Medium	Varies	Medium to High
Maintenance	Easy	Complex	Easy	Moderate	Moderate
Fuel Flexibility	Limited (gas, oil)	Good (gas, coal, biomass)	Electricity only	Dependent on waste source	Excellent (biomass, waste)
Efficiency	70%-85%	85%-95%	~100% point-of-use	Increases plant efficiency	85%-90%
Application Suitability	Small to medium plants	Large-scale operations	Clean/sensitive environments	Heavy industry, energy recovery	Biomass, waste processing plants

Conclusion

Each industrial boiler type has specific advantages and limitations. Fire-tube boilers offer simplicity and low cost, ideal for smaller operations. Water-tube boilers excel in large-scale, high-pressure applications due to their efficiency and scalability. Electric boilers provide clean, low-maintenance solutions but may not be cost-effective for high-output needs. Waste heat recovery boilers significantly cut energy costs by utilizing process waste heat, while fluidized bed boilers deliver fuel flexibility and eco-friendly combustion.

Understanding these differences empowers industries to select the boiler that aligns with operational, environmental, and budgetary requirements.

Need Help Choosing the Right Industrial Boiler?

Contact our expert team today for tailored recommendations, system design, or full-scale installation support. We’ll guide you toward the best boiler solution to maximize efficiency and reliability in your specific industry!

What Industries Commonly Use Industrial Boilers and Why?

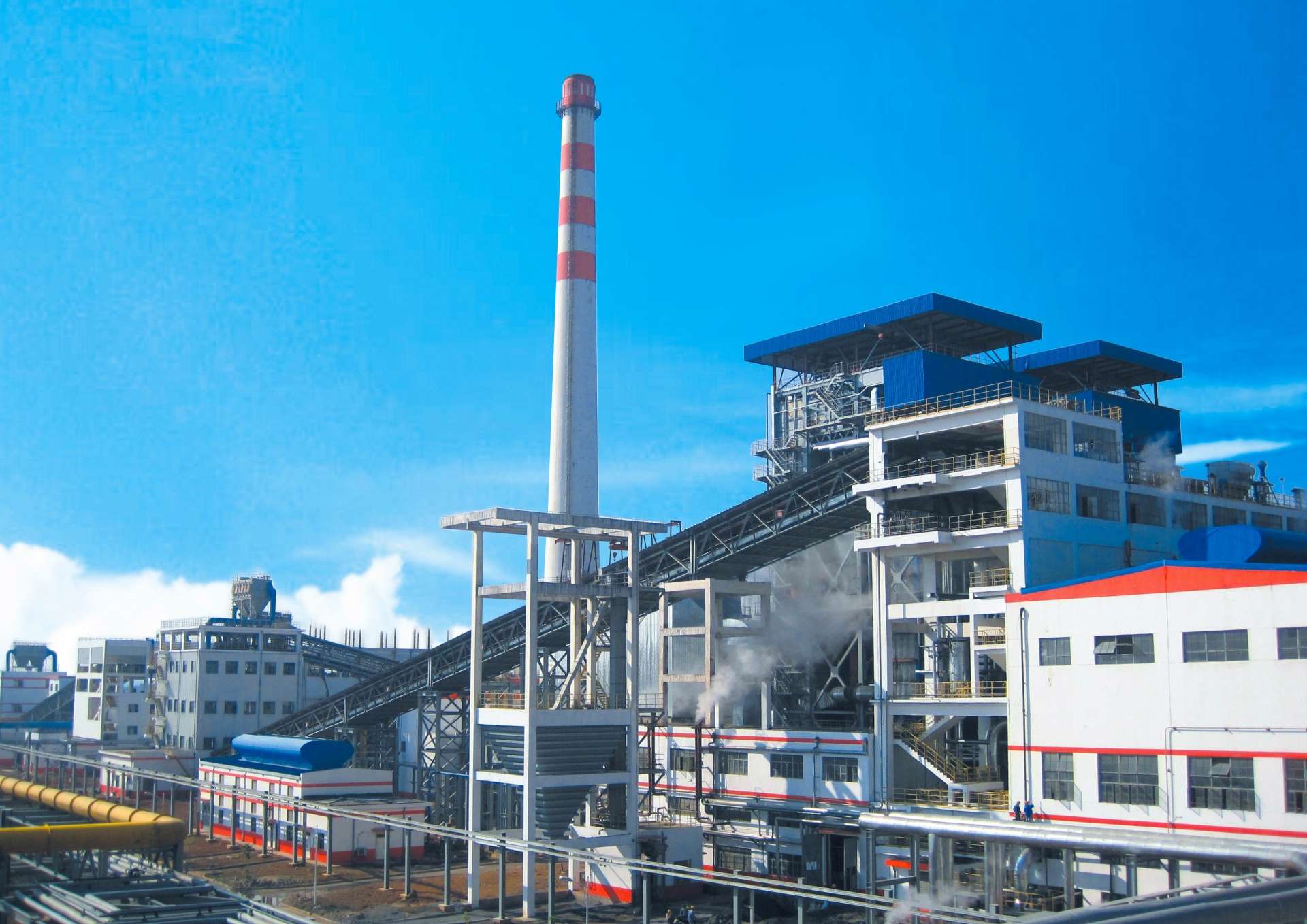

\ Vietnam, Vinacomin Bauxite Alumina Project170th Coal Burning CFB Bolier[/caption]

Industrial boilers are the backbone of many industries. Without reliable steam or hot water, key production processes can grind to a halt, leading to delays, lost revenue, and compromised product quality. Customers often wonder which sectors rely on industrial boilers and what specific roles boilers play in those industries. This article explores the industries where industrial boilers are indispensable and explains why they are so vital.

Industrial boilers are commonly used in industries such as food and beverage processing, chemical manufacturing, power generation, textile production, paper and pulp manufacturing, oil and gas refining, and pharmaceuticals. These industries rely on industrial boilers for applications including steam generation, process heating, sterilization, power production, and chemical processing due to their ability to deliver consistent, high-capacity heat and steam efficiently.

If you are considering industrial boilers for your business, understanding their critical roles across different sectors will help you appreciate their significance and make informed decisions. Keep reading to explore in-depth insights and real-world applications in each industry.

Key Industries That Use Industrial Boilers

Let’s examine each major industry, focusing on how and why they depend on industrial boilers:

1. Food & Beverage Processing Industry

Why Boilers Are Needed:
Industrial boilers are integral to various food and beverage processes:

Application	Purpose
Steam Cooking	Even cooking of food products
Pasteurization	Eliminating harmful bacteria in beverages and dairy
Sterilization	Ensuring hygienic production environments
Cleaning & Sanitation	Cleaning of production equipment
Drying & Baking	Providing consistent, controllable heat

Case Example:
A beverage bottling plant requires steam to sanitize bottles, heat ingredients, and maintain cleanliness. Industrial boilers ensure a continuous supply of high-quality steam, preventing contamination and ensuring compliance with health regulations.

2. Chemical & Petrochemical Industry

Why Boilers Are Needed:
Chemical processes often require precise temperature and pressure conditions. Boilers play the following roles:

Application	Purpose
Process Heating	Supporting chemical reactions and material processing
Distillation Columns	Providing steam for separating chemical compounds
Equipment Cleaning	High-temperature cleaning to prevent contamination
Heat Exchangers	Facilitating thermal energy transfer within production

Technical Advantage:
Water-tube boilers are commonly preferred in this industry due to their ability to handle high-pressure, high-temperature steam essential for complex chemical reactions.

3. Power Generation Industry

Why Boilers Are Needed:
Boilers are the heart of thermal power plants:

Application	Purpose
Steam Turbine Operation	Producing steam to drive turbines, generating electricity
Cogeneration	Generating electricity and useful heat simultaneously
Waste Heat Recovery	Improving plant efficiency using waste heat

Efficiency Data:

Boiler Type	Efficiency Rate
Water-Tube Boiler	Up to 95%
Waste Heat Recovery Boiler	Increases overall plant efficiency by 10%-20%

4. Textile Industry

Why Boilers Are Needed:
Textile manufacturing is heavily dependent on steam:

Application	Purpose
Fabric Dyeing	Consistent, controlled heating for dye penetration
Drying Processes	Quick, efficient drying of fabrics
Ironing & Pressing	Smoothening and shaping fabrics

Case Insight:
In textile plants, fire-tube boilers are popular due to their ease of operation and lower cost, making them suitable for medium-scale production needs.

5. Paper & Pulp Industry

Why Boilers Are Needed:
Boilers serve several crucial purposes in paper manufacturing:

Application	Purpose
Pulp Cooking	Softening wood chips for fiber extraction
Drying Paper Sheets	Removing moisture from paper
Power Production	Generating electricity within mills (cogeneration)

Environmental Benefit:
Many paper mills utilize waste heat recovery boilers to recycle energy and reduce fuel costs, aligning with sustainability goals.

6. Oil & Gas Refining Industry

Why Boilers Are Needed:
Refineries require high-pressure steam and heat:

Application	Purpose
Crude Oil Distillation	Heating crude oil to separate hydrocarbons
Process Heating	Maintaining optimal temperatures in various processes
Utility Steam	Supporting auxiliary systems within the refinery

Boiler Type Preference:
Fluidized bed boilers are often employed due to their fuel flexibility, allowing refineries to utilize byproducts or waste materials as fuel.

7. Pharmaceutical Industry

Why Boilers Are Needed:
Strict hygiene and process control are paramount:

Application	Purpose
Sterilization	Ensuring sterile production environments
Process Heating	Supporting chemical formulations
Clean Steam Generation	For injectable drugs and sensitive products

Compliance Focus:
Electric boilers are frequently selected because they produce clean, emission-free steam ideal for sensitive pharmaceutical environments.

Visual Summary Chart: Industrial Boiler Applications by Industry

Industry	Common Boiler Type	Key Applications	Special Considerations
Food & Beverage	Fire-tube, Electric	Cooking, sterilization, cleaning, pasteurization	Hygiene compliance, energy efficiency
Chemical & Petrochemical	Water-tube, Waste Heat Recovery	Process heating, distillation, cleaning	High pressure, precise control
Power Generation	Water-tube, Waste Heat Recovery	Steam turbines, cogeneration, waste heat reuse	High capacity, efficiency
Textile	Fire-tube, Water-tube	Dyeing, drying, ironing	Consistent heat, cost-effective
Paper & Pulp	Water-tube, Waste Heat Recovery	Pulp cooking, paper drying, cogeneration	Sustainability, fuel savings
Oil & Gas Refining	Fluidized Bed, Water-tube	Crude distillation, process heating, utility steam	Fuel flexibility, high-pressure demands
Pharmaceutical	Electric, Water-tube	Sterilization, clean steam generation, process heating	Zero emissions, hygienic conditions

Conclusion

Industrial boilers are a critical infrastructure component across numerous industries. Whether it’s generating power, facilitating chemical reactions, ensuring food safety, or supporting textile production, boilers play diverse and indispensable roles. By understanding their specific applications, industries can optimize boiler selection, reduce operational costs, and improve efficiency.

Ready to Optimize Your Industrial Boiler Solution?

Contact us today for expert consultation and customized industrial boiler systems tailored to your industry’s specific needs. Let us help you enhance performance, cut costs, and achieve operational excellence!

What Are the Key Components of an Industrial Boiler System?

For any industrial operation, the boiler system is a mission-critical asset. However, many plant managers and engineers face unexpected breakdowns, inefficiencies, and safety risks because they do not fully understand the integral components of the boiler system. Familiarity with each key component allows better maintenance, improved performance, and safer operation. So, what exactly makes up an industrial boiler system?

The key components of an industrial boiler system include the burner, combustion chamber, heat exchanger, steam or water drum, control systems, safety valves, feedwater system, economizer, and exhaust stack. Each component plays a critical role in ensuring efficient heat transfer, safe operation, and consistent steam or hot water production.

Understanding the purpose of each part will empower your team to maintain and optimize boiler performance effectively. Continue reading for an in-depth breakdown of each essential component and its role.

Breakdown of Key Industrial Boiler Components

Here’s a comprehensive look at each vital component, its role, and why it matters:

1. Burner

Purpose:
The burner is the starting point of the boiler’s operation. It is responsible for mixing fuel (such as natural gas, oil, or coal) with air and igniting it to produce the heat required for the boiler process.

Feature	Description
Air-Fuel Ratio Control	Ensures complete combustion, improving efficiency
Fuel Flexibility	Can handle various fuel types based on design
Automated Ignition Systems	Provides safe, reliable burner startup

Key Point:
An improperly tuned burner leads to incomplete combustion, higher emissions, and wasted fuel.

2. Combustion Chamber

Purpose:
The combustion chamber houses the burner flame and contains the combustion process. It is designed to withstand high temperatures while minimizing heat loss.

Feature	Description
High-Temperature Linings	Protects chamber walls from damage
Optimized Shape	Ensures efficient fuel burn
Insulation Layers	Reduces heat loss, improves energy efficiency

Efficiency Impact:
A well-designed combustion chamber supports complete fuel combustion, directly affecting fuel efficiency and emissions.

3. Heat Exchanger

Purpose:
The heat exchanger transfers heat from the combustion gases to the water within the system, transforming it into steam or hot water.

Feature	Description
Surface Area	Maximized for effective heat transfer
Material Quality	Corrosion-resistant metals ensure longevity
Baffles & Fins	Enhance heat transfer by directing gas flow

Comparison Table:

Boiler Type	Heat Exchanger Type	Benefit
Fire-Tube Boiler	Gas through tubes	Simple, cost-effective
Water-Tube Boiler	Water through tubes	Handles high pressures, more efficient

4. Steam Drum / Water Drum

Purpose:
This component separates steam from water and serves as a reservoir for hot water or steam.

Feature	Description
Steam Separation	Ensures dry, high-quality steam output
Water Reservoir	Maintains consistent water supply for steam generation
Blowdown Valves	Removes sludge and impurities to prevent scaling

Operational Note:
Maintaining proper drum water level is crucial to prevent overheating or carryover of water droplets into steam lines.

5. Feedwater System

Purpose:
The feedwater system supplies water to the boiler, ensuring the water is clean and at the correct pressure and temperature.

Feature	Description
Feedwater Pumps	Provide necessary pressure to move water into boiler
Deaerators	Remove dissolved oxygen to prevent corrosion
Preheaters	Heat feedwater to improve boiler efficiency

Maintenance Tip:
Monitoring feedwater quality prevents scaling, corrosion, and efficiency loss.

6. Economizer

Purpose:
An economizer is a heat recovery device that captures residual heat from exhaust gases to preheat the incoming feedwater.

Feature	Description
Energy Savings	Reduces fuel consumption by up to 5%-10%
Lower Emissions	Less fuel burned means reduced CO₂ and NOx emissions
Payback Period	Typically recouped within 1-2 years via fuel savings

7. Control Systems

Purpose:
Control systems monitor and regulate boiler operations, ensuring optimal performance and safety.

Feature	Description
Pressure & Temperature Sensors	Maintain setpoints for safe operation
Combustion Control	Adjusts burner output based on demand
Alarm Systems	Alerts operators to malfunctions

Advanced Controls:
Modern systems offer remote monitoring, automation, and integration with facility management systems.

8. Safety Valves & Pressure Relief Devices

Purpose:
Protect the boiler from overpressure scenarios by releasing excess steam or water safely.

Feature	Description
Spring-Loaded Valves	Open automatically when pressure exceeds set limits
Manual Blowdown Valves	Allow operators to discharge water manually
Compliance	Required by safety regulations (ASME, ISO standards)

9. Exhaust Stack (Flue)

Purpose:
The stack safely releases combustion gases (CO₂, NOx, SOx) into the atmosphere.

Feature	Description
Dampers	Control airflow to optimize combustion
Scrubbers	Remove particulates or pollutants
Height Considerations	Ensures safe dispersal of emissions

Visual Summary: Industrial Boiler Key Components

Component	Function	Key Benefit
Burner	Ignites fuel to produce heat	Fuel efficiency, emissions control
Combustion Chamber	Contains combustion	Heat retention, safety
Heat Exchanger	Transfers heat to water	Efficient steam/hot water production
Steam/Water Drum	Separates steam and water	Consistent steam quality
Feedwater System	Supplies clean water to boiler	Prevents scaling, maintains pressure
Economizer	Recovers residual heat	Reduces fuel consumption
Control Systems	Automates operation	Enhances efficiency, safety
Safety Valves	Releases excess pressure	Prevents accidents
Exhaust Stack	Vents combustion gases	Meets environmental regulations

Conclusion

Each component of an industrial boiler system plays a crucial role in ensuring safe, efficient, and reliable operation. From the burner to the exhaust stack, understanding the function of each part helps prevent breakdowns, optimize fuel consumption, and extend equipment lifespan.

Need Help with Your Industrial Boiler System?

Our team of experts offers full consultation, custom design, and maintenance services to ensure your boiler operates at peak efficiency. Contact us today to get tailored support for your industrial boiler needs!

How to Maintain and Ensure the Safety of Industrial Boilers?

Industrial boiler failure is not just an operational inconvenience—it can result in catastrophic safety hazards, costly repairs, production downtime, or even fatal accidents. Poor maintenance and neglected safety protocols often lead to boiler explosions, leaks, scaling, and efficiency losses. To avoid these severe consequences, industries must implement a rigorous, systematic maintenance and safety strategy for their boiler systems.

Maintaining and ensuring the safety of industrial boilers involves regular inspections, routine cleaning, monitoring control systems, testing safety valves, managing water treatment, conducting blowdown procedures, staff training, and compliance with safety regulations. A proactive maintenance schedule combined with strict safety protocols significantly reduces risks and enhances boiler efficiency and lifespan.

If you want your boiler system to perform optimally, avoid unplanned downtime, and maintain a safe work environment, read on as we outline a comprehensive, practical maintenance and safety guide.

Comprehensive Industrial Boiler Maintenance Checklist

A well-structured maintenance strategy requires both daily operational checks and periodic in-depth inspections. Below is a detailed checklist:

Maintenance Task	Frequency	Purpose
Visual inspection for leaks, corrosion, and wear	Daily	Early detection of mechanical issues
Check burner flame color and stability	Daily	Ensures complete combustion
Monitor water level and pressure	Daily	Prevents overheating, dry firing
Test control panel alarms	Weekly	Confirms responsiveness of alarm systems
Inspect safety valves	Monthly	Verifies pressure relief functionality
Conduct blowdown procedures	Weekly to Monthly (depending on usage)	Removes sludge, impurities, prevents scaling
Clean burner and heat exchanger	Quarterly	Enhances heat transfer efficiency, prevents fouling
Analyze water quality	Weekly	Prevents corrosion, scaling, and chemical imbalances
Test low-water cut-off device	Monthly	Ensures automatic shutdown under unsafe water levels
Inspect economizer and flue system	Quarterly	Improves efficiency, checks for blockages
Overhaul internal components	Annually	Comprehensive check for wear, corrosion, and structural integrity

Industrial Boiler Safety Protocols and Best Practices

Implementing robust safety measures alongside regular maintenance is non-negotiable. Key protocols include:

1. Water Treatment Program

Purpose: Prevents corrosion, scaling, and sediment buildup, which can lead to overheating or boiler failure.

Task	Details
Chemical Treatment	Use oxygen scavengers, pH adjusters, and anti-scalants
Regular Testing	Monitor hardness, conductivity, pH, and dissolved oxygen levels
Deaeration	Remove dissolved gases to prevent internal corrosion

Pro Tip:
Neglecting water treatment results in efficiency losses of up to 15% due to scaling and fouling.

2. Blowdown Procedures

Purpose: Removes accumulated solids, sludge, and impurities from the boiler drum, ensuring stable water quality.

Blowdown Type	Description
Surface Blowdown	Removes dissolved solids from the water surface
Bottom Blowdown	Removes sludge and sediment from the bottom of the drum
Frequency	Adjusted based on feedwater quality and boiler usage

3. Safety Valve Testing

Purpose: Safety valves prevent dangerous pressure build-up by releasing excess pressure.

Testing Task	Description
Manual Testing	Open valve manually to ensure proper release
Set Pressure Verification	Confirm valve opens at prescribed pressure
Seal Integrity Check	Ensure no leaks in valve seals

4. Burner Maintenance

Purpose: Ensures complete combustion, minimizes fuel wastage, and maintains optimal flame stability.

Maintenance Task	Description
Inspect Air-Fuel Ratio	Adjust for complete combustion
Clean Burner Nozzles	Prevent blockages and uneven flames
Flame Sensor Testing	Confirm sensor functionality

5. Inspection of Control and Automation Systems

Purpose: Maintains accurate monitoring, prevents system failures, and ensures prompt response to anomalies.

Inspection Task	Description
Sensor Calibration	Maintain pressure, temperature, and flow measurement accuracy
Alarm Test	Verify correct triggering of warning systems
Control Panel Software Updates	Apply updates to improve system reliability

6. Operator Training and Certification

Purpose: Human error is one of the leading causes of industrial boiler accidents. Trained personnel ensure proper operation.

Training Focus	Description
Safe Operating Procedures	Teach proper startup, shutdown, emergency response
Regulatory Compliance	Ensure knowledge of OSHA, ASME, ISO, and local safety codes
Routine Inspection Practices	Train on recognizing early warning signs of boiler problems

7. Compliance with Regulatory Standards

Purpose: Ensures legal operation, worker safety, and environmental responsibility.

Standard/Code	Requirement
ASME Boiler and Pressure Vessel Code	Design, construction, and inspection guidelines
OSHA Boiler Regulations	Safety practices and inspection frequencies
ISO 9001 & 14001	Quality and environmental management systems

Key Performance Data: Impact of Maintenance & Safety on Boiler Operation

Maintenance Level	Expected Boiler Efficiency	Annual Downtime	Risk of Major Failure
Proactive, Regular Maintenance	85%-95%	Minimal	Very Low
Reactive, Infrequent Maintenance	60%-75%	Significant	High
Neglected Maintenance	Below 60%	High	Very High

Visual Maintenance & Safety Workflow

Step Number	Task	Purpose	Frequency
1	Daily Inspection	Detect leaks, check flame, monitor pressure	Daily
2	Water Treatment Monitoring	Prevent corrosion, scaling	Weekly
3	Blowdown Procedure	Remove sludge, control impurities	Weekly to Monthly
4	Burner Cleaning & Adjustment	Maintain combustion efficiency	Quarterly
5	Safety Valve Testing	Ensure pressure relief functionality	Monthly
6	Comprehensive Component Overhaul	Evaluate internal condition	Annually
7	Operator Safety Training	Prevent human error	Bi-annually/Annually
8	Compliance Audit	Meet legal and safety standards	Annually

---

Conclusion

The safety and longevity of industrial boilers hinge on a disciplined, proactive maintenance regimen combined with strict adherence to safety protocols. Regular inspections, water treatment, safety valve testing, control system checks, and operator training not only prevent accidents but also reduce operational costs and improve energy efficiency.

Need Professional Assistance in Maintaining Your Industrial Boiler?

Contact our team of boiler experts today for comprehensive maintenance services, safety audits, and customized boiler solutions to keep your operations running smoothly and safely!

Conclusion

By understanding the core functions, types, and benefits of industrial boilers, businesses can make better equipment choices, improve operational efficiency, and reduce downtime.

Contact us today to learn more about industrial boiler solutions tailored to your specific needs!

FAQ

Q1: What is an industrial boiler?

A1: An industrial boiler is a large, enclosed vessel designed to heat water or generate steam for industrial processes. It uses various fuels like natural gas, oil, coal, or electricity to produce heat. The steam or hot water generated is used for heating, powering machinery, or producing energy in industries like manufacturing, chemical processing, food production, and more.

Q2: How does an industrial boiler work?

A2: An industrial boiler works by burning fuel or using electricity to heat water inside a pressure vessel. The heat converts the water into steam or hot water, which is then distributed through pipes to equipment or systems requiring thermal energy. Key components include burners, heat exchangers, combustion chambers, and controls to ensure safe and efficient operation.

Q3: What are the main types of industrial boilers?

A3: The primary types of industrial boilers include fire-tube boilers, water-tube boilers, electric boilers, and waste heat recovery boilers. Fire-tube boilers have hot gases flowing through tubes surrounded by water, while water-tube boilers circulate water through tubes heated externally. Each type is selected based on capacity, pressure, fuel source, and application.

Q4: What industries commonly use industrial boilers?

A4: Industrial boilers are widely used in industries such as food and beverage production, chemical processing, oil and gas refining, paper manufacturing, textile production, and power generation. They play a crucial role in supplying heat, steam, and energy for essential industrial operations.

Q5: What are the safety measures for industrial boilers?

A5: Safety measures for industrial boilers include regular maintenance, pressure and temperature monitoring, proper installation, use of safety valves, and operator training. Compliance with standards like ASME Boiler and Pressure Vessel Code ensures the boiler operates safely and efficiently, minimizing risks of accidents or failures.

References

1. Industrial Boiler Basics – https://www.thermodyneboilers.com/industrial-boiler – Thermodyne Engineering
2. How Industrial Boilers Work – https://www.boilercompany.com/how-industrial-boilers-work – Nationwide Boiler
3. Types of Industrial Boilers – https://www.powerhouse.com/boiler-education/types-of-boilers – Powerhouse Boiler Equipment
4. Industrial Boiler Applications – https://www.miq.com/industrial-boiler-applications – Miura America
5. Safety Guidelines for Industrial Boilers – https://www.osha.gov/boiler-safety – OSHA
6. ASME Boiler Standards – https://www.asme.org/codes-standards/find-codes-standards/boiler-pressure-vessel-code-bpvc – ASME
7. Steam Boiler Systems Explained – https://www.cannonboilerworks.com/steam-boiler-systems – Cannon Boiler Works
8. Fire-Tube vs Water-Tube Boilers – https://www.industrialboiler.com/fire-tube-vs-water-tube-boilers – Industrial Boiler & Mechanical
9. Industrial Boiler Maintenance Tips – https://www.manufacturing.net/energy/article/21207388/industrial-boiler-maintenance-guide – Manufacturing.net
10. Energy Efficiency in Industrial Boilers – https://www.energy.gov/eere/amo/energy-efficient-industrial-boilers – U.S. Department of Energy
